What is a Multi-Task Learning model?

As the name suggests, Multi-Task Learning refers to a single shared machine learning model that can perform multiple different (albeit related) tasks. Multi-Task Learning offers advantages like improved data efficiency, faster model convergence, and reduced model overfitting due to shared representations.

Multi-Task Learning resembles the mechanism of human learning more closely than Single-Task Learning because we humans often learn transferable skills. For example, learning to ride a bicycle makes it easy for someone to learn to ride a motorbike later on, which builds upon similar concepts of body balance. Moreover, learning to ride a motorcycle with gears helps to learn to drive a car with manual transmission faster. This is referred to as the inductive transfer of knowledge.

This mechanism of knowledge transfer is what allows humans to learn new concepts with only a few examples or no examples at all (which in Machine Learning is called “Few-Shot Learning” and “Zero-Shot Learning,” respectively).

Similarly, neural networks trained to perform a single task need to learn all the underlying concepts from scratch, which could have been obtained from other tasks as auxiliary information. This increases the overall computational cost of the single models.

For example, a model trained for image classification learns to classify samples by localizing specific objects in the images. Such a model, when used in conjunction with solving an object detection problem, already has the underlying feature localization capability, leading to faster model convergence. Thus, the same model is used to generalize over different tasks.

Read more: Overfitting vs Underfitting in Machine Learning [Differences]

When should Multi-Task Learning be used?

In multi-task learning, multiple tasks are solved at the same time, typically with a single neural network. In addition to reduced inference time, solving a set of tasks jointly rather than independently can, in theory, have other benefits, such as improved prediction accuracy, increased data efficiency, and reduced training time.

Unfortunately, the quality of predictions is often observed to suffer when a network is tasked with making multiple predictions due to a phenomenon called “negative transfer.” In fact, multi-task performance can suffer so much that smaller independent networks are often superior. This may be because the tasks must be learned at different rates or because one task may dominate the learning leading to poor performance on other tasks. Furthermore, task gradients may interfere, and multiple summed losses may make the optimization landscape more challenging.

Nevertheless, when task objectives do not interfere much with each other, performance on both tasks can be maintained or even improved when jointly trained. Intuitively, this loss or gain of quality seems to depend on the relationship between the jointly trained tasks.

At the very least, the different tasks to be solved by a network need to have some inherent correlation. For example, a 2D keypoint detection task, where a model localizes important parts of an image, is correlated to a 2D edge detection task. Similarly, a depth estimation task is closely correlated to a Surface Normal Prediction task (deals with the task of predicting the surface orientation of the objects present inside a scene).

Ideally, a multi-task learning model will apply the information it learns during training on one task to decrease the loss on other tasks included in training the network. An exhaustive search for subsets is a possible solution to finding tasks that should be grouped together. However, this is extremely inefficient computationally.

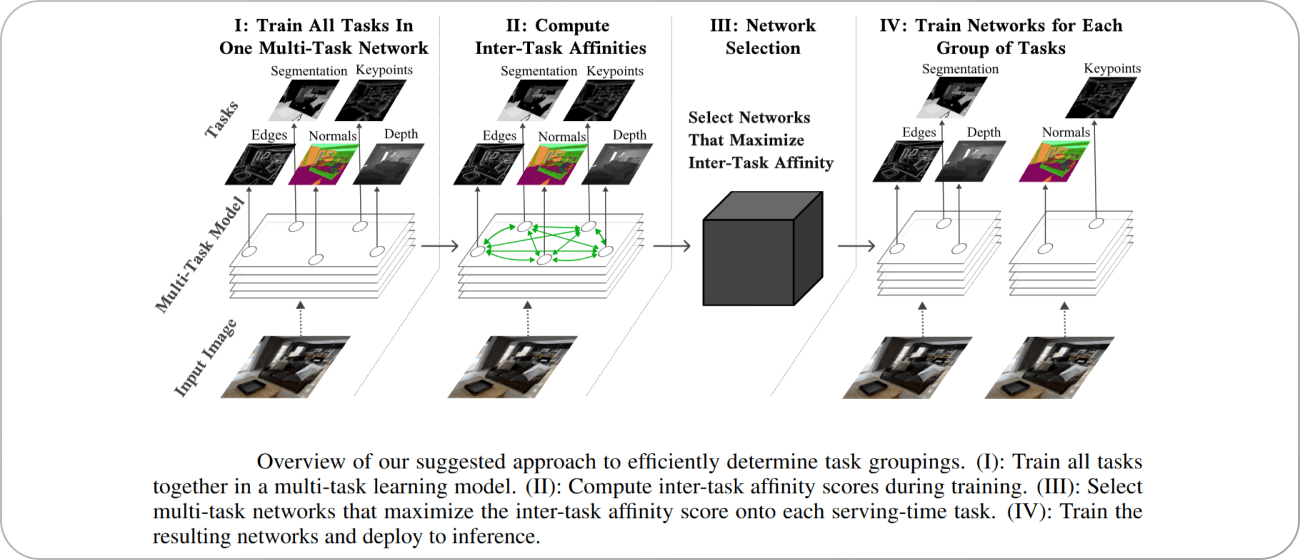

To solve this challenge, this paper by the Google Brain team drew inspiration from meta-learning (like Zero-Shot Learning), i.e., the concept of “learning to learn” to build “Task Affinity Groupings” or TAG.

Source: Paper

TAG updates its model parameters with respect to only one single task and evaluates how this update affects the performance of the other tasks, and then undoes this update. This process is then repeated for every other task to gather information on how each task in the network would interact with any other task. Training then continues as normal by updating the model’s shared parameters with respect to every task in the network.

Using this strategy, the authors found that some tasks, when grouped together, in fact, exhibit beneficial relationships, while grouping some other set of tasks hurts overall model performance. Thus, multi-task learning is effective when tasks that are jointly optimized have high affinity and they cannot be randomly chosen into groups.

Optimization Methods for Multi-Task Learning

As we’ve already discussed, not all tasks can be claimed to be correlated and thus used in a Multi-Task Learning framework. The imbalance of datasets, the dissimilarity between tasks, negative transfer of knowledge, all pose challenges to Multi-Task Learning. Thus, the optimization of tasks is as important as selecting proper architectures for obtaining the best possible performance. Different strategies are used in the literature for optimization, which we will discuss next.

Loss Construction

This is one of the most intuitive ways of performing multi-task optimization—by balancing the individual loss functions defined for the separate tasks, using different weighting schemes. The model then optimizes the aggregated loss function as a way to learn multiple tasks at once.

Different loss weighing mechanisms have been used in the literature to aid the Multi-Task problem. For example, this paper assigned weights to the individual loss functions to be inversely proportional to the training set sizes of the respective tasks so as to not let a task having more data dominate the optimization.

Hard Parameter Sharing

In Hard Parameter Sharing, the hidden layers of the neural networks are shared while keeping some task-specific output layers. Sharing most of the layers for the related tasks reduces the chances of overfitting.

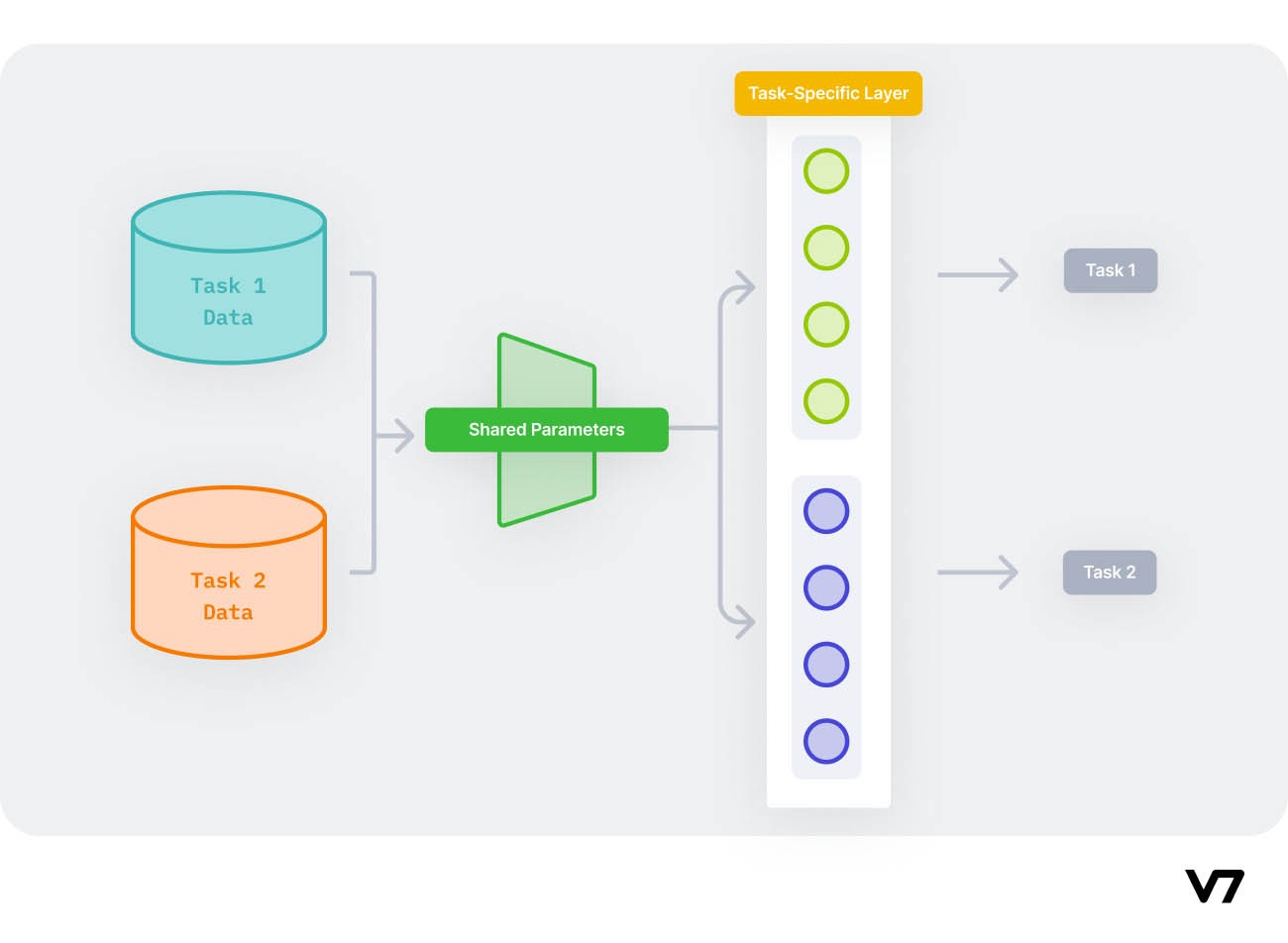

Illustration of Hard Parameter Sharing

According to this paper, the more tasks a shared model is learning simultaneously, the more it has to find a representation that captures all of the tasks, and the smaller the chance of overfitting on our original task.

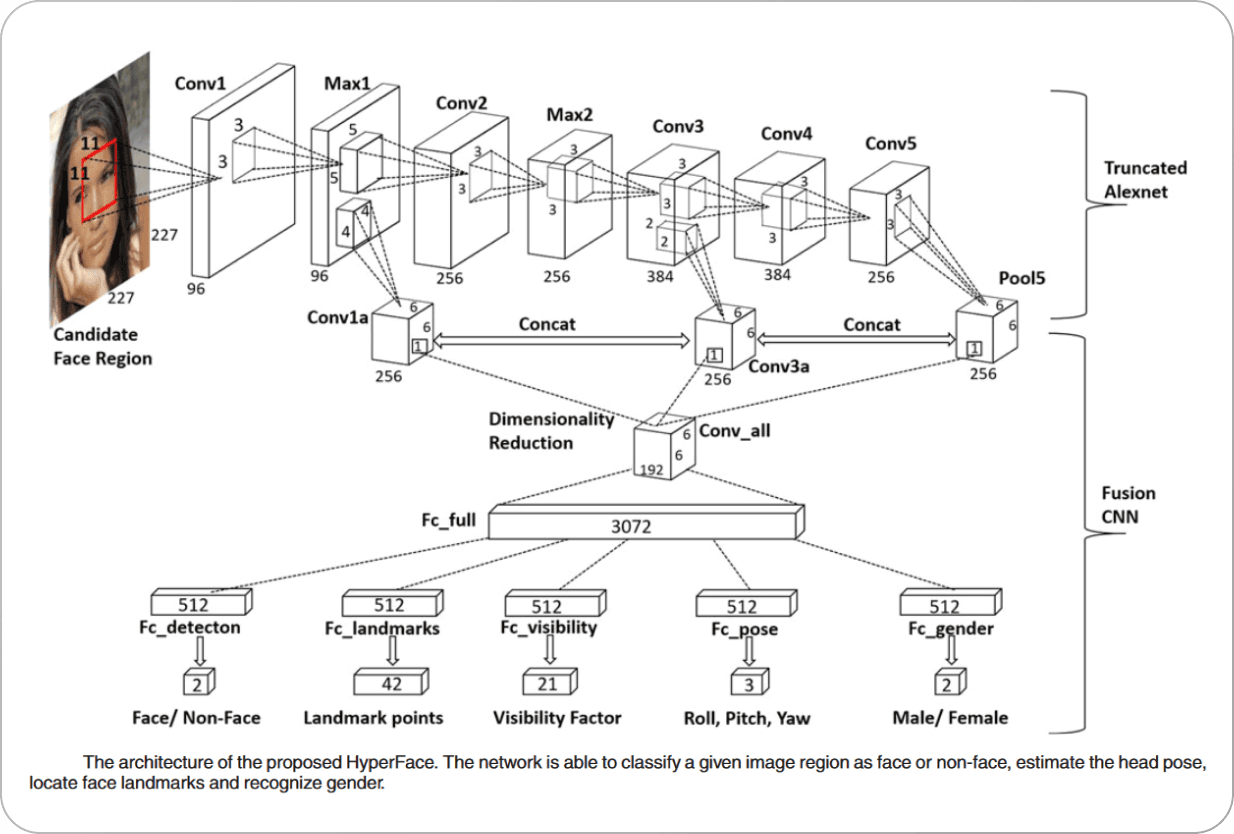

HyperFace is a Multi-Task framework for Face Detection, Landmark Localization, Pose Estimation, and Gender Recognition. It extracts shallow features from the data and fuses them for passing through a single CNN model through hard parameter sharing and uses separate, fully connected layers for the different tasks. The architectural diagram of the HyperFace framework is shown below.

Source: Paper

Soft Parameter Sharing

Hard parameter sharing performs well only if tasks are closely related. Therefore, new approaches have focused on learning the features that need to be shared between tasks. Soft parameter sharing refers to regularizing the distance between the parameters of the individual models to the overall training objective to encourage similar model parameters between the different tasks. It is commonly used in Multi-Task Learning as such regularization techniques are easy to implement.

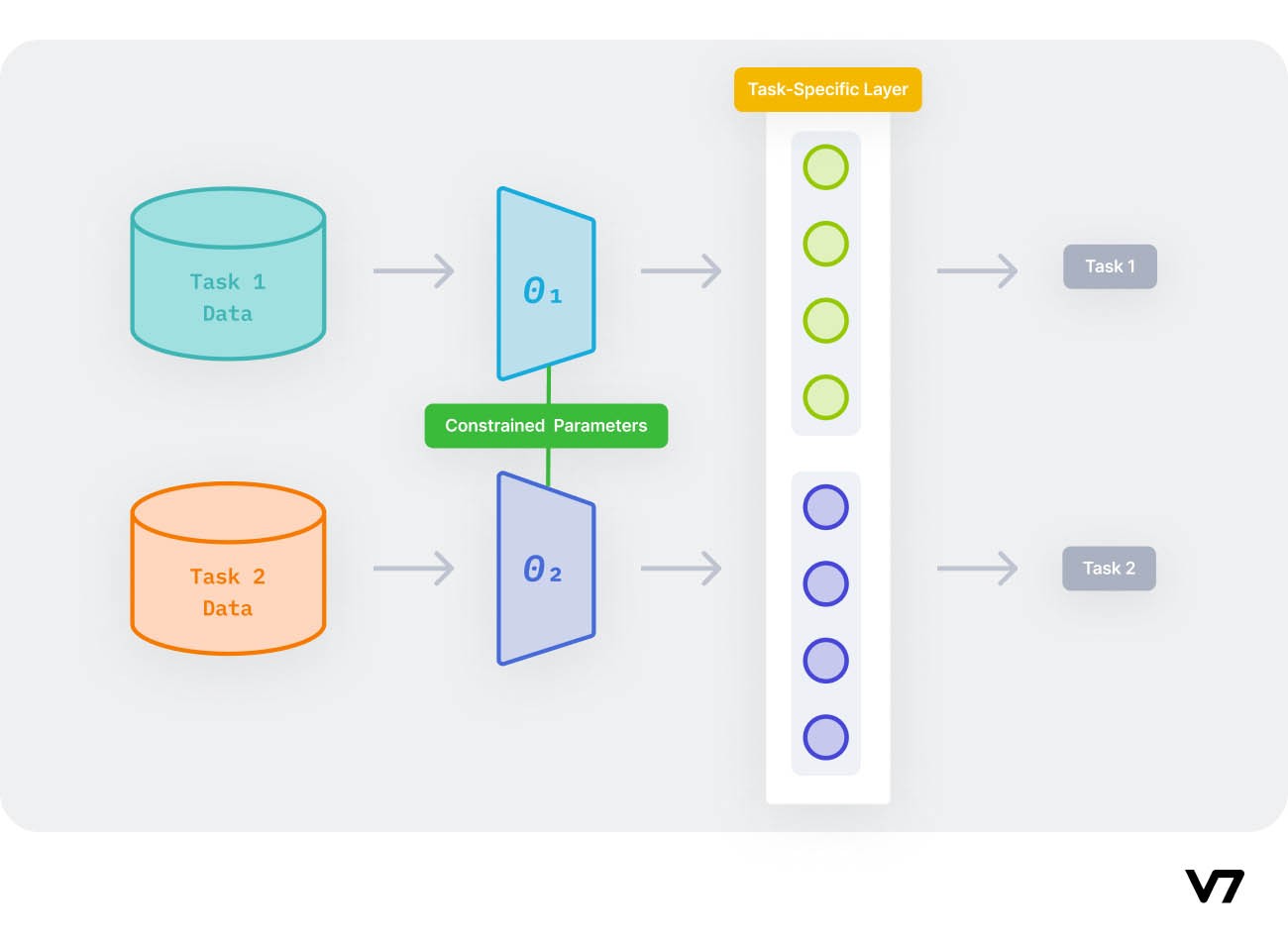

Illustration of Soft Parameter Sharing

For example, the authors in this paper regularized the model parameters by using L2 normalization for an NLP task. This paper replaced the L2 normalization with the tensor trace norm of the tensor formed by stacking corresponding parameter vectors from different tasks.

Data Sampling

Machine Learning datasets often suffer from imbalanced data distributions. Multi-Task Learning further complicates this issue since training datasets of multiple tasks with potentially different sizes and data distributions are involved. The multi-task model has a greater probability of sampling data points from tasks with a larger available training dataset, leading to potential overfitting.

To handle this data imbalance, various data sampling techniques have been proposed to properly construct training datasets for the Multi-Task optimization problem. For example, researchers use “temperature” for data sampling, which is defined by:

An example of this is the method used in this paper, which tackles the problem of multilingual neural machine translation using a dynamic temperature-based sampling strategy for multilingual data. That is, with every epoch, the temperature coefficient is updated based on the model performance on the different tasks.

Read more: Training Data Quality: Why It Matters in Machine Learning

Task Scheduling

Most Multi-Task Learning models make a decision on which task(s) to train on in an epoch in a very simple way, either training on all tasks at each step or randomly sampling a subset of tasks to train on. However, intelligently optimized task scheduling can significantly improve the overall model performance on all tasks.

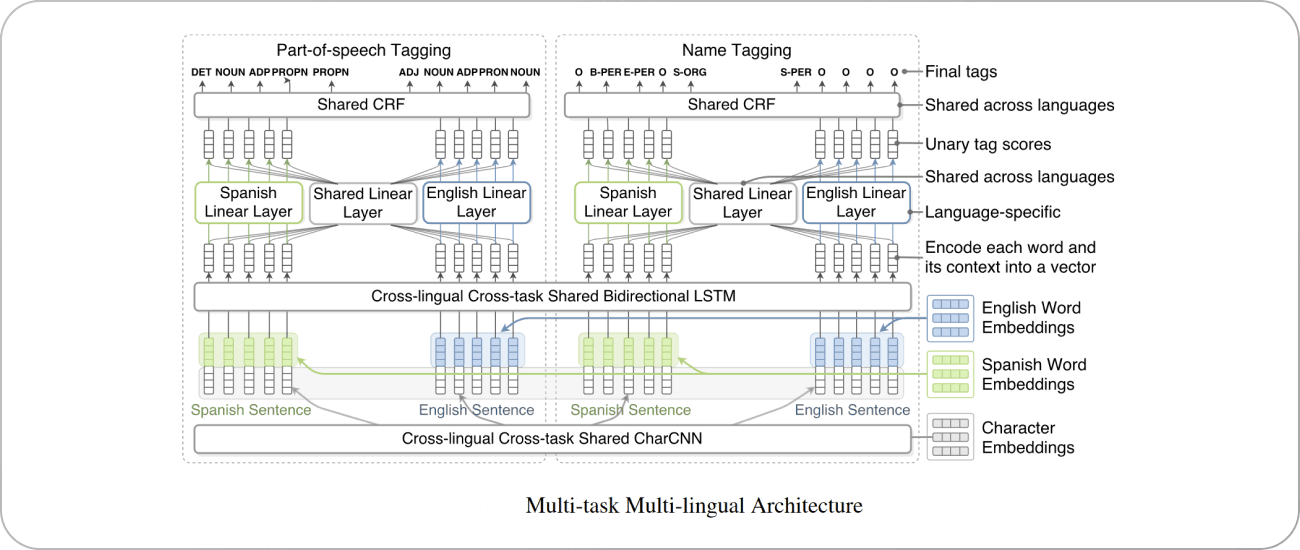

For example, this paper proposes a multi-task multi-lingual model where tasks are scheduled according to the similarity between each task and the primary task. The authors consider both task similarity and the number of training samples available for the task to compute the choice for tasks to be trained in each step. The architecture developed by the authors is shown below.

Source: Paper

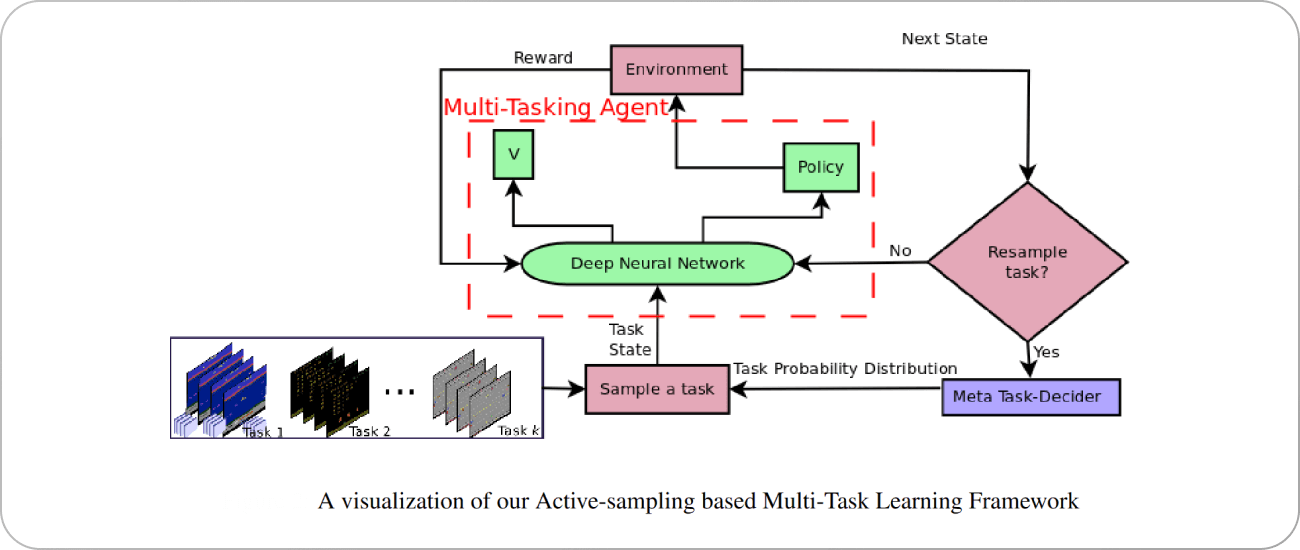

Another example is the approach adopted in this paper, where task scheduling has been employed in a multi-task Active Learning framework. The idea here is to assign task scheduling probabilities based on relative performance to a target level: the further the model is from the target performance on a given task, the more likely it is that the task will be scheduled. This is akin to the loss construction (specifically weighting individual losses) methods we saw before, which increase the loss weight of a task that exhibits slow learning. This task scheduling procedure is visually represented below.

Source: Paper

Gradient Modulation

Most Multi-Task Learning approaches assume that the individual tasks used for the joint optimization are closely related. However, each task might not be closely related to all available tasks. In such cases, sharing information with an unrelated task might even hurt performance, a phenomenon known as “negative transfer.”

From an optimization perspective, negative transfer manifests as the presence of conflicting task gradients. When two tasks have gradient vectors that point in opposing directions, following the gradient for one task will decrease the performance of the other task. Following the average of the two gradients means that neither task sees the same improvement as in a single-task training setting. Thus, modulation of task gradients is a potential solution to this problem.

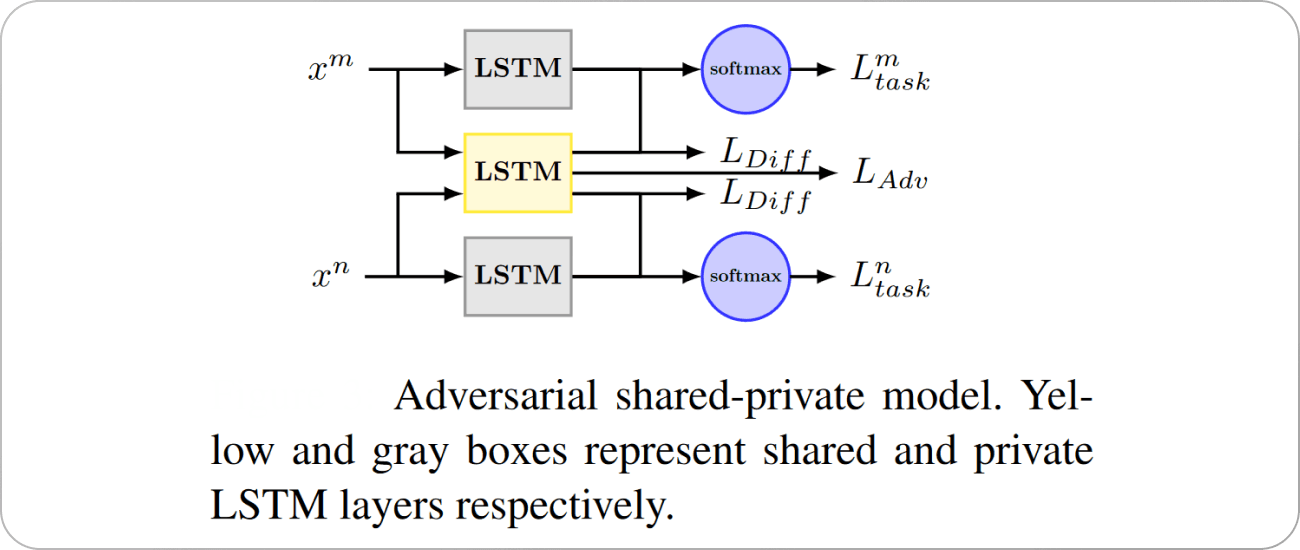

If a multi-task model is training on a collection of related tasks, then ideally, the gradients from these tasks should point in similar directions. One common way gradient modulation is done through adversarial training. For example, the Gradient Adversarial Training (GREAT) method enforces this condition explicitly by including an adversarial loss term in the multi-task model training that encourages gradients from different sources to have statistically indistinguishable distributions.

Source: Paper

Knowledge Distillation

Knowledge Distillation is a Machine Learning paradigm where knowledge is transferred from a larger computationally expensive model (called the “teacher” model) to a smaller model (called the “student” model) while retaining performance.

In Multi-Task Learning, the most common use of Knowledge Distillation is to distill the knowledge from several individual single-task “teacher” networks to a single multi-task “student” network. Interestingly, the performance of the student network has been shown to surpass that of the teacher networks in some domains, making knowledge distillation a desirable method not just for saving memory but also for increasing performance.

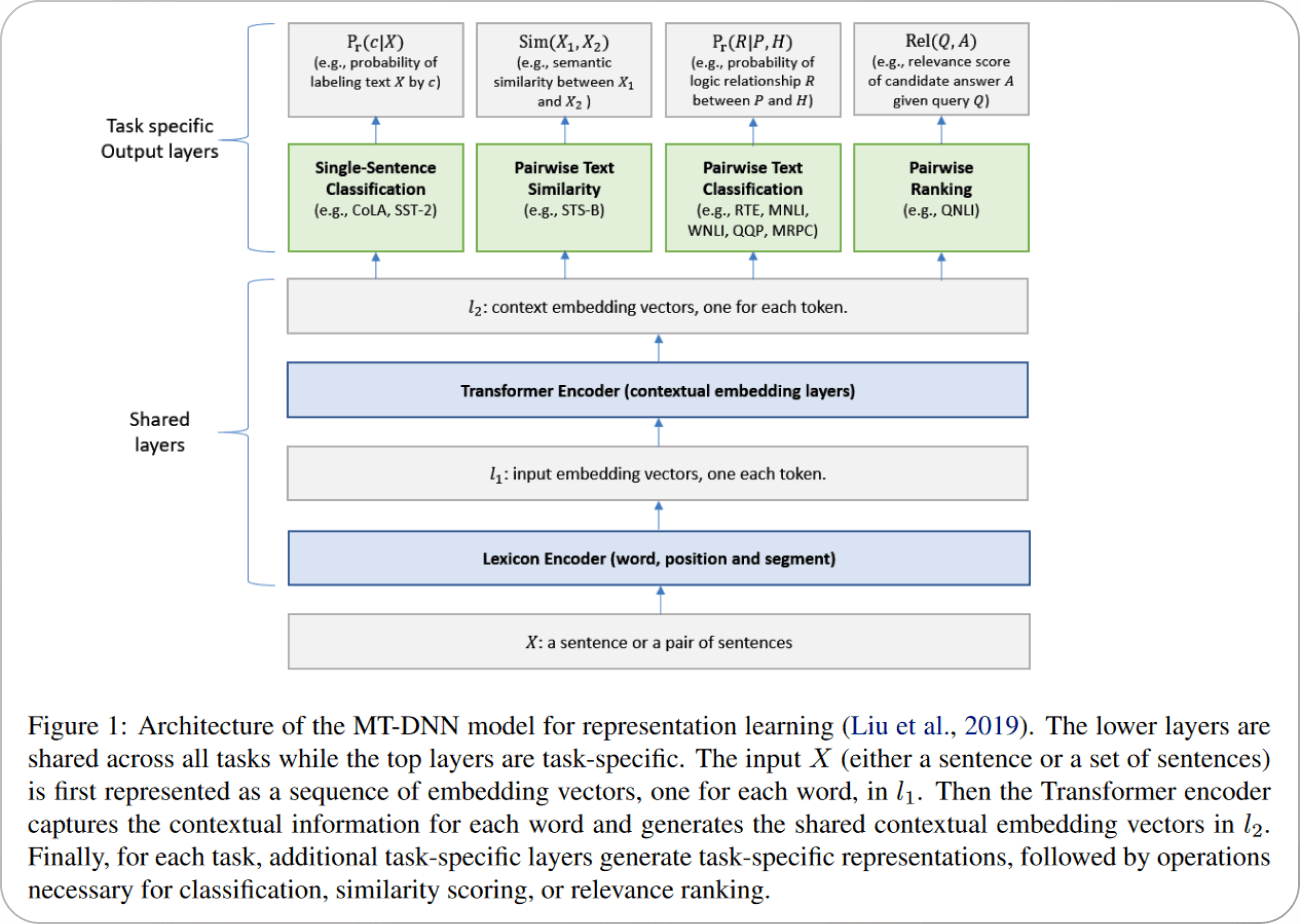

For example, this paper extended Knowledge Distillation for Multi-Task Learning to a Natural Language Understanding problem. In the training process, a few tasks are selected, and for each task, the authors train an ensemble of MT-DNN models (teachers) that outperform the best single model. Then, a single MT-DNN (student) model is trained via multi-task learning with the help of the teachers by using both the soft targets (classification probabilities predicted by the teacher models) and correct targets across different tasks. The training procedure is illustrated below.

Source: Paper
